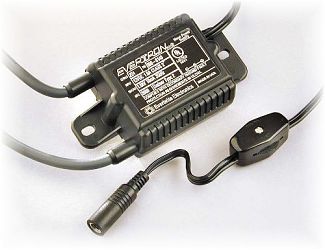

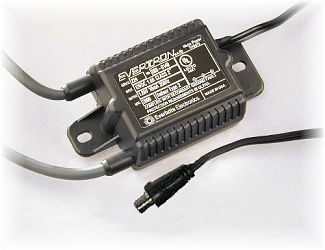

This small, compact, power supply operates from 12V DC at 1A and produces up to 3.26kV at 10mA. Lower load voltages, such as 1.2kV can allow for currents up to 15mA. The standard 224 is intended for use inside a housing, where the threaded bulkhead power connector provides a means of mounting and disconnect. The 224 with a switch is intended for mounting on a bar frame; where the extra length cable, switch, and shrouded power connector can free hang from the sign. The 224 is primarily intended to run Argon/Mercury loads, but mixed Neon/Argon loads and small pure Neon loads may work acceptably as well (please test!).

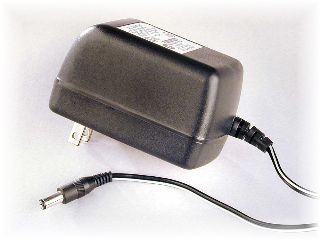

Description: 3.5kV sign volts, 18mA neon power supply Features: Anti-mercury migration. Input Voltage: 12 VDC Agency approvals: UL (UL2161 listed) Dimensions: 4.2" (l) x 2.5" (w) x 1.25" (h), 3.6" mounting center Weight: 0.3 lbs. (136 g.) Power cord: 8.00" w/ 2.5mm barrel connector, threaded for bulkhead, includes 12VDC, 1A Power Adapter GTO output leads: 16 inches Mounting Hardware (not included): 2 each, #8-32 machine screws, 5/16" longer than mounting thickness, two #8-32 nuts and washers. Color: Black Warranty: Four years from date of manufacture. AC Adapter: Output = 12VDC, 1A. Included.
These products are for sale @ EverbriteOnline or call us at 1-800-431-7383.
