Note: The 226 is no longer offered, please use the slightly more powerful 226H in all applications

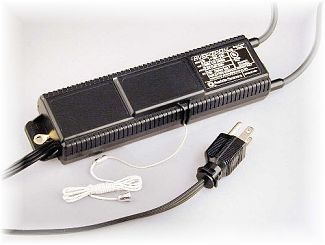

226H/D - 120V

226H/D - 230V

This high voltage power supply is designed to drive small wall mounted Neon signs and medium sized Argon/Mercury signs for a reasonable cost. The unit runs at a cool 16-21mA and has a closed case.

Key Specifications

Description: 6.4kV sign volts, 25mA neon power supply, 226H is non-dimming.
The 226D has a slide switch for a single dim setting which reduces the output current by 6-8mA.
Features:
Anti-bubbling, Anti-mercury migration.

Protection: Over voltage, Ground fault, Short circuit current limit.
Input Voltage: 120VAC or 230VAC
Agency approvals: UL (UL2161 listed), cUL, CE-230VAC model
Dimensions: 8.6" (l) x 2.5" (w) x 1.5" (h), 8.0" mounting center
Weight: 0.7 lbs. (0.32 kg.)
Power cord: 10 foot on 120VAC model ONLY

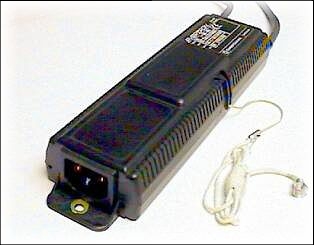

NOTE: the 230V model has an internal three pin grounded IEC 320 connector. Purchase of the appropriate cordset is the buyers responsibility.
GTO output leads: 22 inches
Mounting Hardware (not included): 2 each, #8-32 machine screws, 5/16" longer than mounting thickness, two #8-32 nuts and internal tooth star washer.
Color: Black
Warranty: Four years from date of manufacture.

Pricing

These products are for sale @ EverbriteOnline or call us at 1-800-431-7383.

Description

Part #

Price

226H - 120V 800-0151 www.everbriteonline.com
226H - 230V 800-0157 www.everbriteonline.com
226D - 120V 800-0153 www.everbriteonline.com
226D - 240V 800-0157 www.everbriteonline.com
